V500云可视对讲安装指南

I. Introduction

Cloud video intercom access control products company is adhering to the deep accumulation in the wireless data communications, security, cloud computing, financial cryptography, relying on smart phones for the launch of a series of video intercom access control products, including cloud video intercom , access control, reader, one machine, the smart phone APP, cloud services and other full range of products, access control based on protection of financial security encryption algorithms and high-level security access control to provide customers with convenient, fast, safe access.

II. Function

Support capture card, ID card to open the door
Public security network, to meet the full needs of the floating population management
Phone APP remote to open the door, open the door Bluetooth, card door
Standard supports wired, wireless communication wifi, optionally supported 3G / 4G communication
Low-cost deployment, optional indoor units, dramatically reducing the cost of upgrading video intercom

III. Size

1.带防雨罩

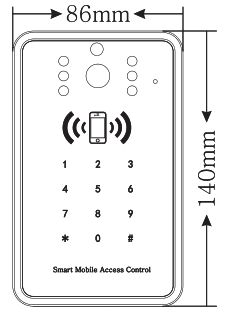

front view

side view

2.不带防雨罩

front view

side view

 四.接线标及门禁示意图

1. Wiring Standard

2. wiring diagram

五.设备安装

1. Using a Phillips screwdriver to remove the screws on the bottom tamper

2. Remove the wall mounting plate from the device

3. screwdriver hanging plate fixed to the wall

4.Tighten the bottom tamper-proof screw to secure the machine to the wall mounting plate

六.电插锁/磁力锁接线说明

1. The lock device common power supply

FIG energized normally open lock connection

NC wiring diagram energization lock

2. The locking device is not a common power supply

FIG energized normally open lock connection

NC wiring diagram energization lock

3.门禁专用电源接锁

通电插锁电磁接线方式

七.灵性锁、电控锁接线图

1.灵性锁电控锁接线方式（开关电源）

1.灵性锁电控锁接线方式（门禁专用电源）

八.门磁、出门开关、报警接线图

设备只支持DC12V的报警器

IX. Notes

1. The power supply apparatus using keep pushing 12V3A
2. Prohibit live wiring, live action resulting in unexpected machine problems, we
There will be no normal warranty
3. Read the installation instructions carefully before installing and wiring instructions before wiring, strictly in accordance with
Wiring specification, result in damage due to incorrect operation, it does not belong to the normal warrant
4. After the power machine is not running, power down immediately, then it is necessary to check the line

5. The Company reserves the right to amend this document and interpretation
