V500

Cloud video intercom host


V500可视对讲主机

    product feature

  • Working mode: mobile phone cloud video intercom / mobile phone Bluetooth / smart card / password to open the door / remote door opening
  • Camera: 2 million front, day and night | Operating system: Linux
  • Audio: High Power Speaker | Video: Support H.264
  • Network function: WiFi / Ethernet / 3G / 4G | DC: 12V 5A
  • Access control function: mobile phone Bluetooth / WiFi / RFID / NFC / ID / password / temporary password to open the door
  • Product features: video intercom / voice docking / telephone docking / mobile phone open / remote monitoring open

◇☆◇More IoT more intelligence

    Application field

Community access

bank

Technology Building

Smart campus

Elevator ladder control

meeting

◇☆◇More IoT more intelligence

    Product parameters:

woke patternInternet, offline
operating system:Android
CPU：ARM 4 core
RAM:2G
Flash8G
Internet connectionEthernet /WiFi/4G Optional
power supply:DC 12V 5A
Operating temperature:-25℃-65℃
Working humidity:10%-95%
input interfaceOpen button, tamper, door magnet, alarm, etc.
Alarm function:Support tampering, illegal door opening alarm, door open time alarm, fire linkage
Access control function:Mobile APP remote open / Bluetooth open / password open / smart card / mobile cloud visual intercom
product features:Advertising / announcement play, video intercom, voice intercom
size:395mm*325mm*25mm

◇☆◇More IoT more intelligence

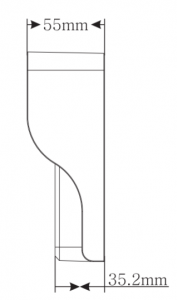

    Product Size:

                                            positive

side

◇☆◇More IoT more intelligence

    Installation guide:



1. Use a Torx screwdriver to remove the tamper-proof screw on the bottom of the device.



 2. Remove the wall mounting plate from the device



 3. Screw the scraper to the mounting wall



 4.Tighten the bottom tamper-proof screw to secure the machine to the wall mounting plate
